Inspired by one of the many beautiful pictures in The Stargazer’s Guide to the Universe, I decided to try again at a procedural nebula shader. This time, I wanted to more accurately portray light passage through the nebula and the dazzling colors of back-lit galactic dust.
Here’s what I got – a nebula set on fire by a partially-occluded star:
Yes, there’s a reason why my post count is going to be down this month. It’s the trap that every programmer falls into once they start learning 3D programming: the game engine trap. Yes, I’m going to build my own 3D game engine.
I’ve developed a sort of philosophy on the subject. I used to say that I would never get sucked into a pointless project like re-inventing the wheel; I always said that I would be the “smart” programmer and use the tools that others had created. If standing on the shoulders of giants could get me a job and a nice apartment in California, then I’d do it in a heartbeat. Unfortunately, I know now that it’s not that simple. I’ve come to a realization: you can either spend a lifetime learning the intricacies of an engine that somebody else designed, or you can spend a lifetime creating your own. Either way, you’ve wasted a lifetime. Nobody wins. Ever.
In defense of my sanity, I assert that one cannot know how something works until one can build it without assistance. Creation is the ultimate proof of knowledge. So, unless you can create an engine from scratch, can you really understand one? I don’t want to only partially understand somebody else’s work. It’s just not who I am. For the sake of A New Reality, I need to start from the bottom.
Don’t judge me. You’ll be happy that I’m doing this for you, future me.
I spent the entire day taking a first crack at starfield/nebula shaders. I couldn’t be happier with the results! Below the output of a single shader that consists of thresholded pink noise (stars), and two turbulent-input multifractal perlin noise layers (nebula density/color).

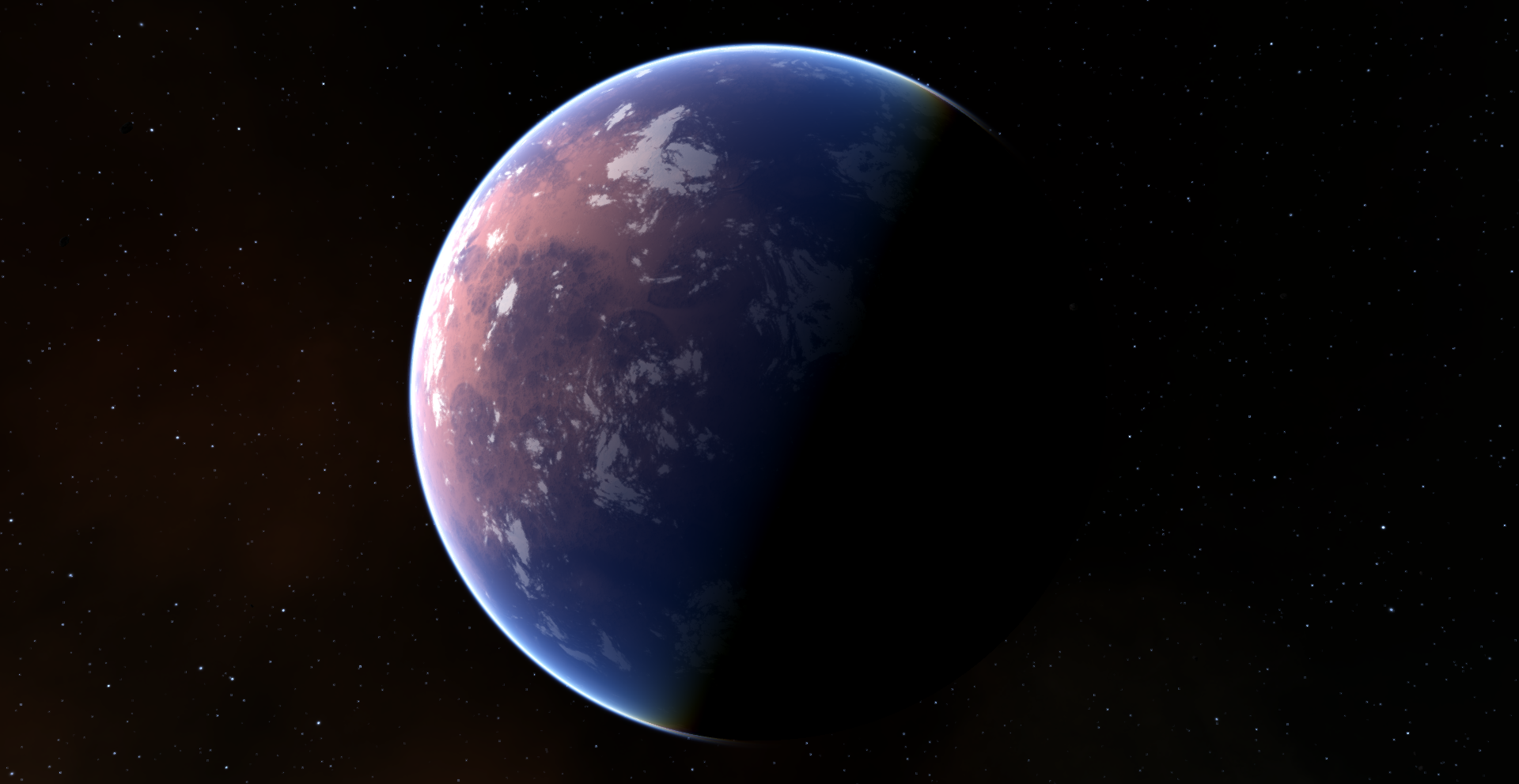

Couple these results with a procedural planet, procedural terrain, and procedural sunset, and things will be starting to look pretty good for project A New Reality!
After implementing several new features in DirectX, including a bloom effect and a skydome primitive, I experimented with making skies that could pass as acceptable. Though not by any means blown away by the appearance of my procedural clouds (let’s face it, when it comes right down to it, perlin noise doesn’t look anything like real volumetric clouds), I was quite happy with the overall effect created by the skydome, the bloom shader, and a sunset-style fog.
The result:
Note that the cloud shader actually consists of a turbulent perlin noise, which gives the clouds a slightly nicer appearance than simple perlin noise would allow. Interestingly, the seed value of the noise can be animated, along with scrolling of the texture coordinate offset, to produce the illusion of moving, ever-changing clouds. Unfortunately, the technique is quite expensive, especially for high-resolution cloud maps. However, with the rapidly-expanding power of graphics cards, it may be viable to animate a full, dynamic, 1024 res cloudmap in at smooth framerates in the very near future.
My question: “What do you call the family of functions with both a variable base and a variable exponent, such as f(x) = x^x?”
The response: “Just an exponential function…there’s nothing variable about that base: x^x = e^(xlnx)”
BAM. And my world came down, just like that.
In my silence over the past week, I’ve been experimenting a great deal with pixel shaders, hoping to get to a point where I feel that I can use procedural shaders to generate any type of texture – grass, rock, metal, etc. A procedural texture system will be critical in the development of a realistic virtual world.
To aid me in my search, I’ve created an innovative system (with the rather cheesy name “SlimShady”) that writes, compiles, and executes procedural shaders. Not procedural in the sense that the shader generates procedural textures, rather, procedural in the sense that the shader is randomly generated by the program itself. Yes, SlimShady is a program that writes programs.
The real idea behind SlimShady is as follows: I can be working on something on my desktop and have SlimShady running on a laptop connected to my TV, such that the program will write a random shader, execute it and animate the seed value for a minute or so, then rinse and repeat. As I’m working, I can occassionaly glance at the TV to see if the shader catches my eye. If so, I hit return on a wireless keyboard, which instructs SlimShady to save a preview image and the full source code for whatever shader is currently executing. In essence, I can sift through an infinite number of shader permutations without having to touch the code! Not to mention, it makes a rediculously cool display…I could spend hours watching the program go to work on the TV.
Here are a few simple shaders written by an earlier version of SlimShady. The newer ones look even better! Also, note that the shaders are generally animated with a seed value – meaning they dynamically morph in real-time, making them far more interesting than can be conveyed in a static image.
Yet another primitive noise type has joined my library: Worley noise. This type of noise is directly based off of the concept of Voronoi diagrams. A Worley noise algorithm simply distributes a set of random points in 2-dimensional space and then computes the distance to the nearest point at a given pixel. The distance computed determines the color value of the pixel.
Interestingly, Worley noise resembles heavily-eroded perlin noise to some degree. It produces fairly convincing heightmaps with characteristic sharp slopes.
Two weeks ago, I knew nothing about low-level DirectX graphics programming (aka Direct3D/D3D). After relentless hours of reading, coding, trial-and-error, and frustrating bug hunts, I finally feel powerful again…almost as powerful as I feel in XNA. Except this time, I know the power is real. This power doesn’t require .NET, doesn’t rely on CLR, and isn’t managed – no, it’s power in the most raw of forms.
As far as topics go, I’ve covered everything up through effects/shaders. Â I did skip to the last chapter in the book in order to get a head-start on render-to-texture, since I simply can’t live without procedural textures.
Here’s the final product of tonights work, which included importing my previous ridged perlin multifractal shader and making a tweaking it up a bit. Â I’m absolutely stunned by how fast it runs – significantly faster than XNA! Â I continue to be impressed by the power of native D3D.
Having been through several high-level engines (Esenthel, Torque), several low-level engines (Irrlicht, Ogre3D), and a light C# DirectX wrapper (XNA), I’ve finally worked my way down to the bottom: native DirectX in C++. It’s the way games were meant to be made. At every level, I find myself thirsting for more. More power, more control, more access. It’s the nature of the types of applications I’m trying to develop. Procedural content isn’t a task for the high-level engine. It requires tighter control than typical game content in order to achieve decent speed and memory management.
That being said, here we are, finally, with some results. It’s taken two weeks and hundreds of pages of Frank Luna’s excellent book to bring me this far.
It may not look like much. In fact, it isn’t much. But 200 lines of code isn’t a number to scoff at. That’s the price you pay for tight control. It’s a price that I’m completely and totally willing to pay.
From here on out, I’m committed to learning how to do things as thoroughly as possible, without using helper classes and frameworks like DXUT. My goal by the end of the summer: be able to write a simple 3D game in native DX starting with nothing but a blank project in VC++ and using no resources other than IntelliSense.
Crazy, I know. But talk about rewarding.

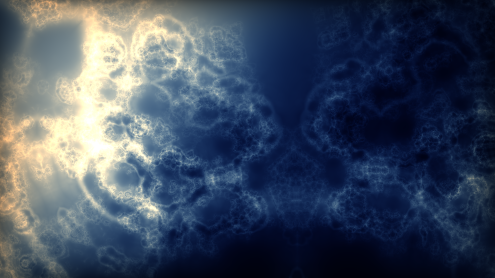

Here’s an interesting little shader I wrote today, initially as an attempt to render the Mandelbrot Set in real-time. Unfortunately, my attempt failed somewhere along the line, because the output set only vaguely resembled the famous Mandelbrot image. Instead of quitting, I played around with the equation and came up with some interesting, real-time morphing fractals. Couple that with a little bloom filter and color transformation, and you’ve got a pretty nice little image.
Pixel shaders amaze me.
